Dantherm RCC Range
Dantherm RCC Range
$4,699.00
Ideal for small residential areas

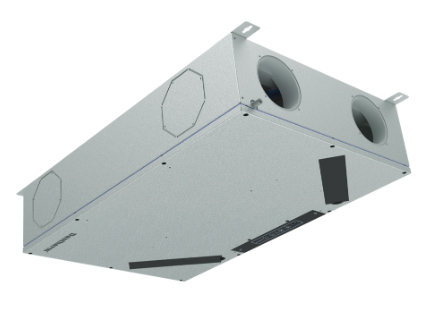

The RCC range has been designed to cover ventilation needs in apartments and other residential areas of up to 80m2 with a particular focus on installation flexibility, safety and ease of maintenance.
One unit fits all installation scenarios

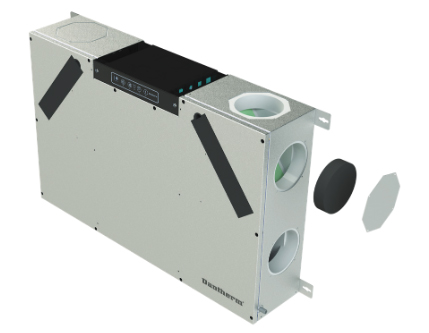

Unique to the residential ventilation market, the RCC offers a stunning 96 different ways of connecting ducts to the unit. 6 different mounting options each offering 16 duct connection combinations. (A) setups are the standard configuration, (B) can be configured on site.
The air flow direction can be electronically swapped, thereby making it possible to route the connected ducts either to the right or to the left. This means that the supply air duct connections can be placed either on the right or to the left hand side of the unit.
Moreover, the factory-mounted duct seals on the side of the unit can easily be removed using a side cutter and then used to seal off other ducts not to be used.
This means that you can use the same unit for all installation scenarios. There is no risk of ordering units that have been preconfigured incorrectly for your needs.
Be the first to review “Dantherm RCC Range”
The HCV 300 is a highly efficient residential ventilation unit for houses, villas, and apartments. It comes as a packaged basic ventilation unit complete with built-in control panel, and is delivered with all parts necessary for wall installation.
The HCV 300 is also perfect for concealed installation. The unit is available in a variant without filter lid and with an Aluzinc surface. Delivered four units on a pallet at a time, it minimises the use of packaging in consideration of the environment.
The HCV 400P1 is a highly efficient residential ventilation unit for houses, villas, and apartments. It comes supplied as a packaged basic ventilation unit complete with built-in control panel, and is delivered with all parts necessary for wall installation. All HCV 400 units fit perfectly in a 60 x 60cm cupboard.
The unit is available in a variant without filter lid and with an Aluzinc surface. Delivered four units on a pallet at a time, it minimises the use of packaging in consideration of the environment.
The HCC 360E1 is a unique and flexible residential ventilation solution. With only 30cm installation headroom it is ideal for installation in suspended ceilings or onto a wall, even hidden inside a closet. The unit can be electronically reversed, meaning that both air flows will be reversed. This allows the same unit type to be mounted with the inside/outside ducts connected to either the right or the left hand side of the unit. Electrical connections can be connected from either the left or the right.
The HCC 360E1’s surface is in Aluzinc and the units will be delivered on pallets of four to reduce packaging and shipping costs. This makes it ideal for large-scale projects.
Heat recovery takes place in a highly efficient counter-flow heat exchanger, which is able to achieve optimum efficiency with the least possible loss of pressure in connection with the low air volumes used in housing. Transferring the humidity from the extract air to the fresh supply air prevents a dry indoor climate during wintertime. In the summer, when the relative humidity of the outdoor air is high, supply air will be dehumidified when passing through the enthalpy exchanger. This makes the supply air feel comfortably cold. Because of their superb ability to recover both heat and humidity, enthalpy exchangers are known to reduce heating costs substantially.
The HCV 700 is a highly efficient residential ventilation unit for houses, villas, and apartments of up to 450m2 or more. It comes supplied as a packaged basic ventilation unit complete with built-in control panel, and are delivered with all parts necessary for wall installation. The HCV 700 is ideal for free wall installation with minimum 700mm space. A standard wall rail is supplied with all units.
The HCH 8 residential ventilation units are primarily designed for 1-2 family houses. The units are supplied as packaged ventilation units complete with built-in demand-control and a control panel. The residential ventilation units are fitted with highly efficient counter flow heat exchangers which are optimised to a very high efficiency level thus achieving a very low specific fan power (SPI value) for the entire unit.
